Fridge Glass Goor For Multi Deck Plug In Refrigerator Chiller Glass Door

Name: Fridge Glass Goor For Multi Deck Plug In Refrigerator Chiller Glass Door
Brand: FAMOUS
Price: 100 USD

China Fridge Glass Goor For Multi Deck Plug In Refrigerator Chiller Glass Door wholesale

Brand Name : FAMOUS

Model Number : Single-temperature

Certification : ROHS, CE, CCC , UL, ETL, ISO9001:2008

Place of Origin : Mainland of China

MOQ : 1 set

Price : USD100/ set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 sets per month

Delivery Time : within 15-30days

Packaging Details : 1.Plywood case, glass door and fittings are packaged separately to avoid harmeness 2.Specical packing according to clients' request for Aluminum alloy frame walk in cooler glass door.

Type : Display Cooler

Frame Material : Aluminum Alloys

Model : Refrigerator Glass Door

function : Self-closing, anti-condensation

origin : Mainland of China

Electric heating : With/ without Electric heating

Door dimension : Customized

Color : Black/sliver/golden

Contact Now

Fridge Glass Goor For Multi Deck Plug in Refrigerator Chiller Glass Door

1. Technical parameter

Service	ODM/OEM/customer's designs are available
Application	Walk in cooler/freezer, commercial cold room, supermarket display refrigerator/freezer
Type of glass	Tempered clear glass, tempered Low-e glass
Hollow glass layer	Single glazed(2-pane glasses), double glazed(3-pane glasses)
Advantages of our doors	1.Anti-fog,Anti-condensation,Anti-frost 2. Thermal insulation, Constant cooling temperature keeping products fresh. 3. Easy handling and access for customers and staff. 4.90° hold-open feature for easy loading. 5.Safety glass door. 6.used of polysulfide rubber or silicone rubber to seal, door gasket with magnet
Thickness	4mm glass+15mm spacer+4mm glass , 4mm glass+9mm spacer+3.2mm glass+9A spacer+4mm glass OR customized
Specification	1.Zero Heat in Cooler/Freezer Doors 2.Heat Reflective Low-e Glass 3.Hold-Open and Door Stop 4.Magnetic Door Gaskets for Tight Seal 5.Slimline Handle (full length handle optional) 6.T-8 Lighting system 7.White color,black color and golden color frame available

* Below zero C degree( for freezer-18 to-25C)
Standard combination :

Outer glass:	4mm tempered Low-e coated with heater
Air space:	20 mm (Dry air or Argon filled)
Intermediate glass:	3.2mm tempered
Inner glass:	4mm tempered

2. Detail Descriptions of Glass Refrigerator Doors

· Double/Single hollow, 3/2 layer tempered glass with 1 electric heating tempered glass.
· Color of aluminum alloy frame has silver, black and golden.
· Door handles have vertial straight handle and middle handle.
· 90 degree stopper, self-return funtion, LED light and customized hinges.
· Suitable for Display Freezer(-18°C)/Chiller(0°C).

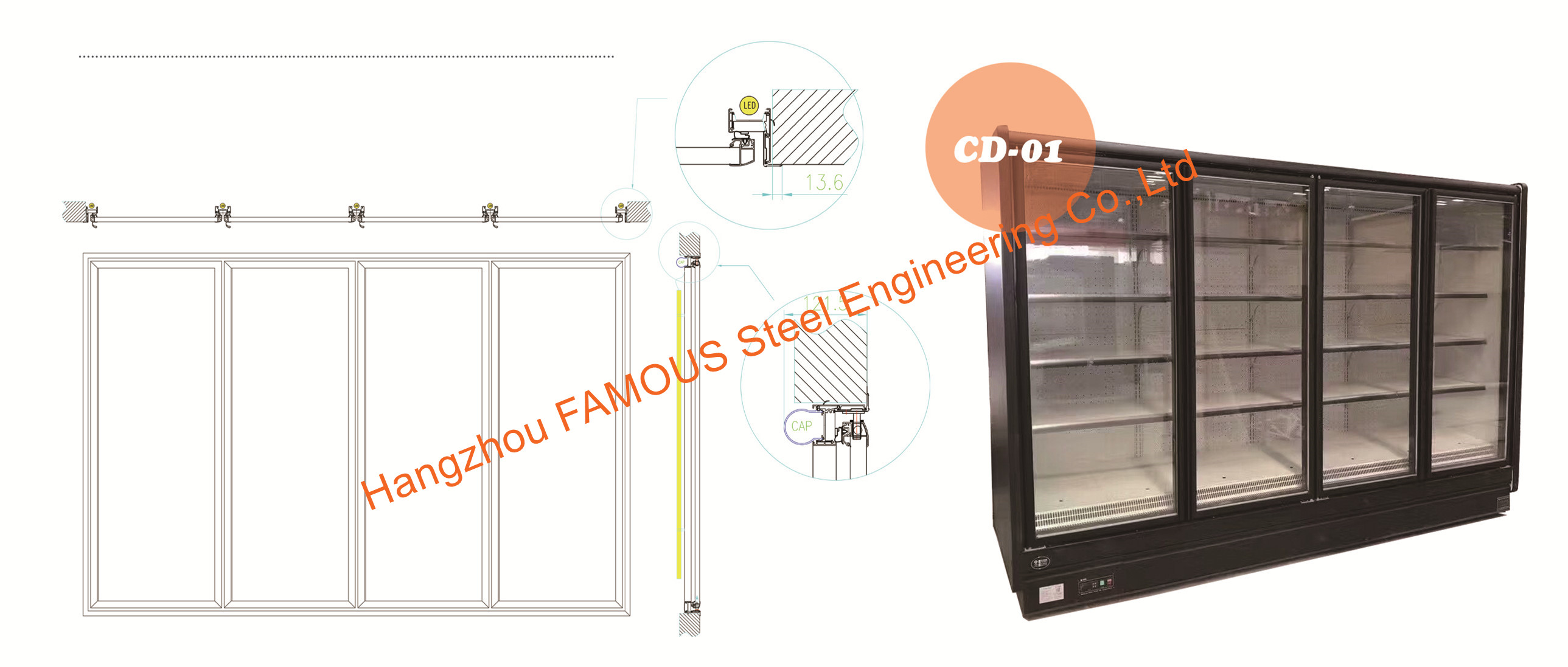

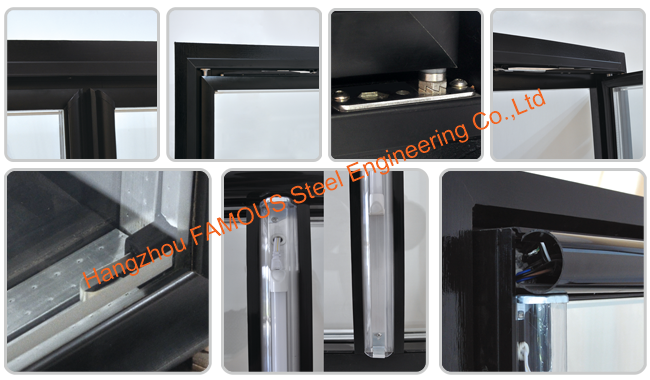

3. Detail pictures
Fridge Glass Goor For Multi Deck Plug In Refrigerator Chiller Glass Door

4. Specification:
　
※ Heated Glass and Frame Technology.
※ Double hollow,3 layer tempered glass with 1 electric heating tempered glass.
※ Color of aluminum alloy frame has silver,black and golden.
※ Door handles have vertical straight handle and middle handle.
※ 90 degree stopper, self-return function,LED light and customized hinges.
※ Suitable for Display Freezer(-18℃)

5. Packing

6. Application:
※ Cooler and Freezer
※ Walk-in Cooler Freezer
Fridge Glass Goor For Multi Deck Plug In Refrigerator Chiller Glass Door
